- Üretici
- Broadcom Limited
- Üretici Ürün Kodu
- HDSP-8603
- Entegreci Kodu
- EE02157-6

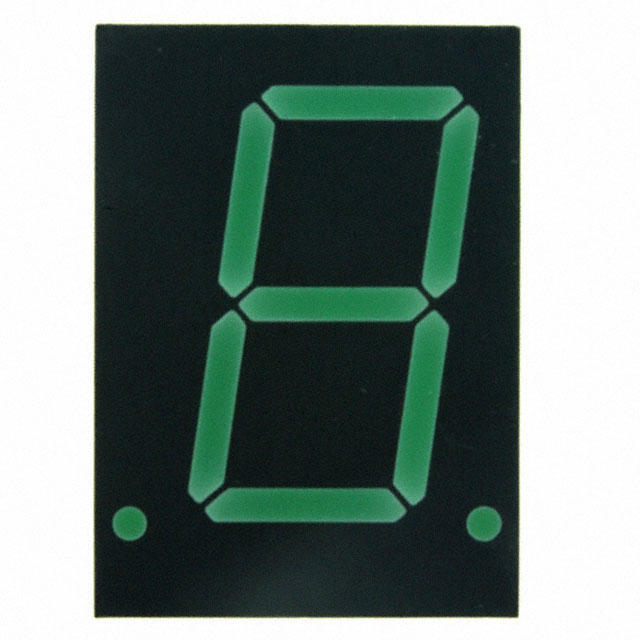

Broadcom Limited HDSP-8603
DISPLAY 7SEG 0.8" SGL GRN 18DIP
Ürün Bilgileri
Display Modules - LED Character and Numeric Green 7-Segment 1 Character Common Cathode 2.1V 10mA 1.090" H x 0.786" W x 0.330" D (27.69mm x 19.96mm x 8.38mm) 18-DIP (0.600", 15.24mm), 12 Leads
- Üretici
- Broadcom Limited
- Number of Characters
- 1
- Size / Dimension
- 1.090" H x 0.786" W x 0.330" D (27.69mm x 19.96mm x 8.38mm)
- Digit/Alpha Size
- 0.80" (20.32mm)
- Display Type
- 7-Segment
- Common Pin
- Common Cathode
- Renk
- Green
- Gerilim - İleri (Vf) (Ort)
- 2.1V
- Current - Test
- 10mA
- 1.5mcd
- Wavelength - Peak
- 566nm
- Power Dissipation (Max)
- 105mW
- Kılıf
- 18-DIP (0.600", 15.24mm), 12 Leads
- Temel Parça Kodu
- HDSP-860
